Dane techniczne:

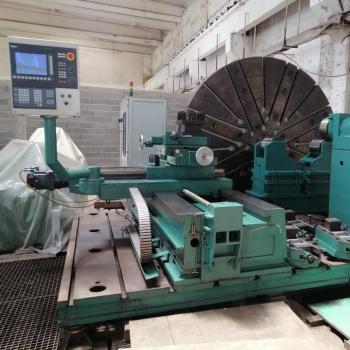

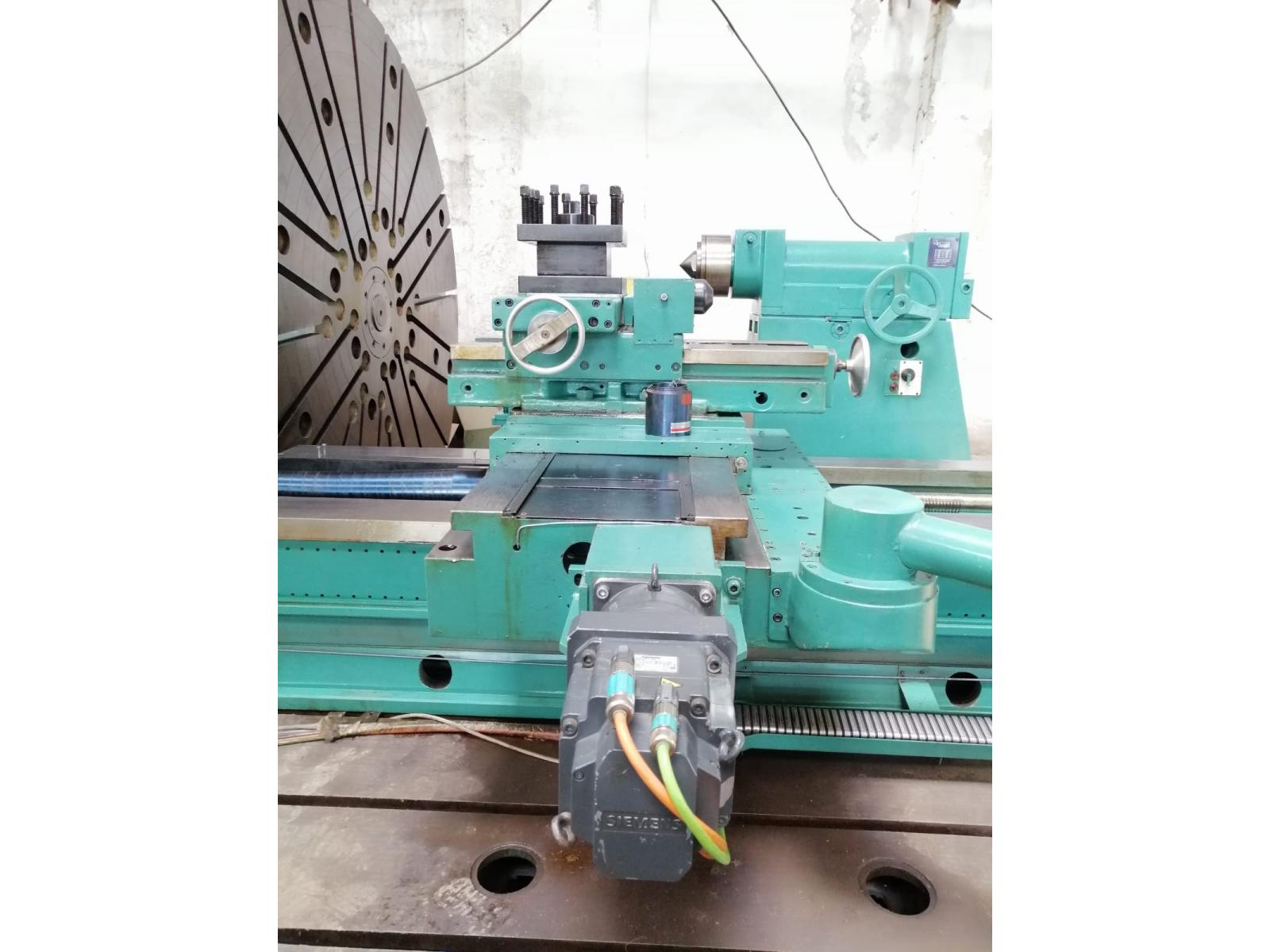

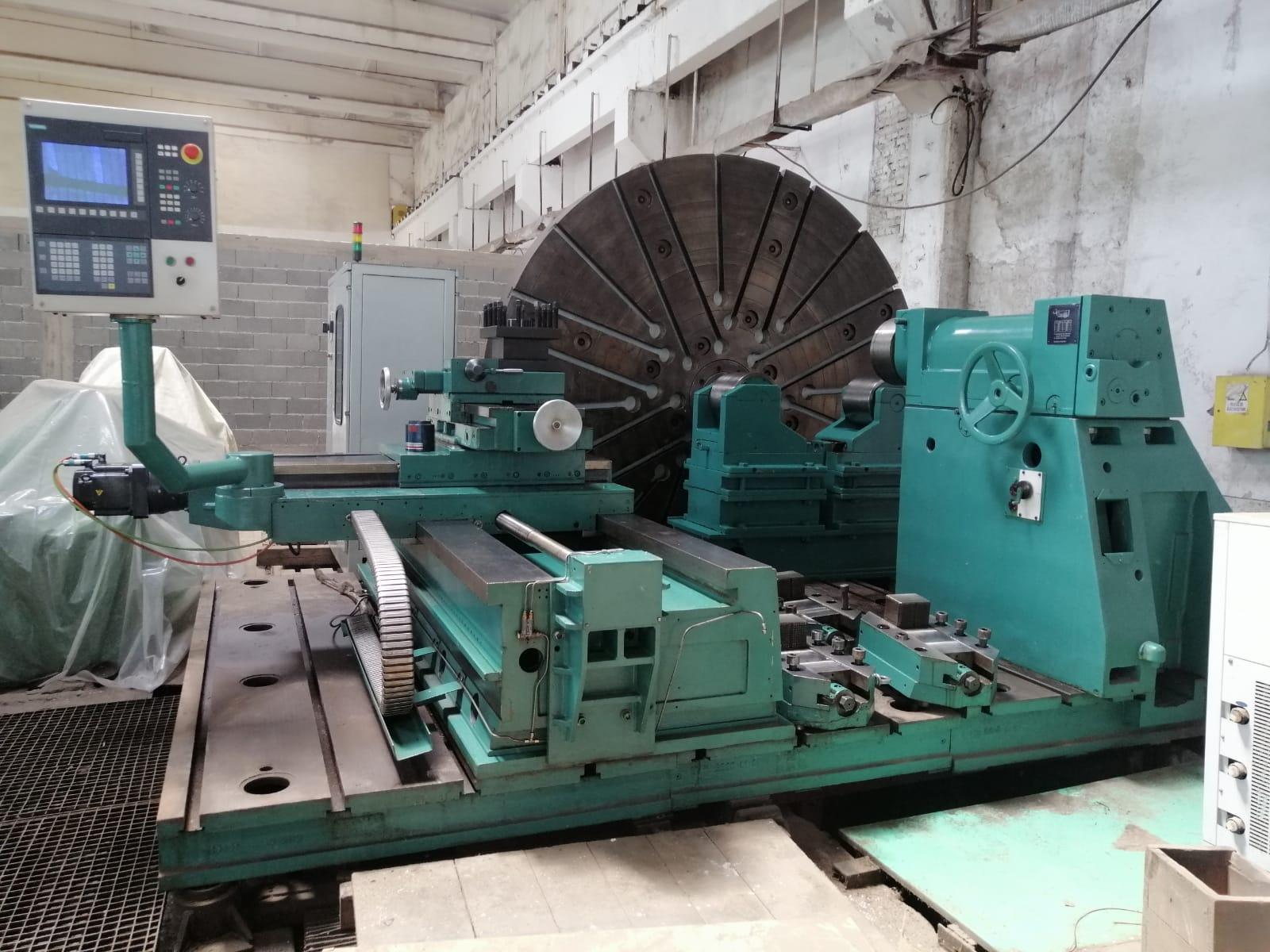

3. Front lathe NILLES type DP 4000 CNC SIN 802 D

Technical specifications :
- Maximum turning diameter 4000 mm
- The length of the piece between the tips 6000 mm Optional 8000 mm
- Plate diameter 3150 mm
- The weight of the turning part 25 to
- Plate speed range 0.9 – 90 rpm
- Range of continuous advances 0 – 4000 mm/min
- Longitudinal stroke of the trolley 6000 mm
- Transversal stroke of the trolley 1500 mm
- Main motor 75 Kw DC
- The total weight of the car 62,000 daN
- Dimensions (L x W x H) 16500 x 5200 x 3100 mm
Technical execution and supplies:
- SIEMENS electrical equipment and CNC 802D
- Brassless advance motors with ZF 70 Nm reducers
- Centralized lubrication equipment AZETA – ITALY
- Hydraulic equipment ATOS - ITALY
- STAR - REXROTH precision ball screws Ø 63 x 10.
- Measuring system with HEIDENHAIN rulers for the X and Z axes.
- Rectified guides on the WALDRICH - COBURG machine
- BALLUFF type micro blocks for soft limits and stroke limits.
