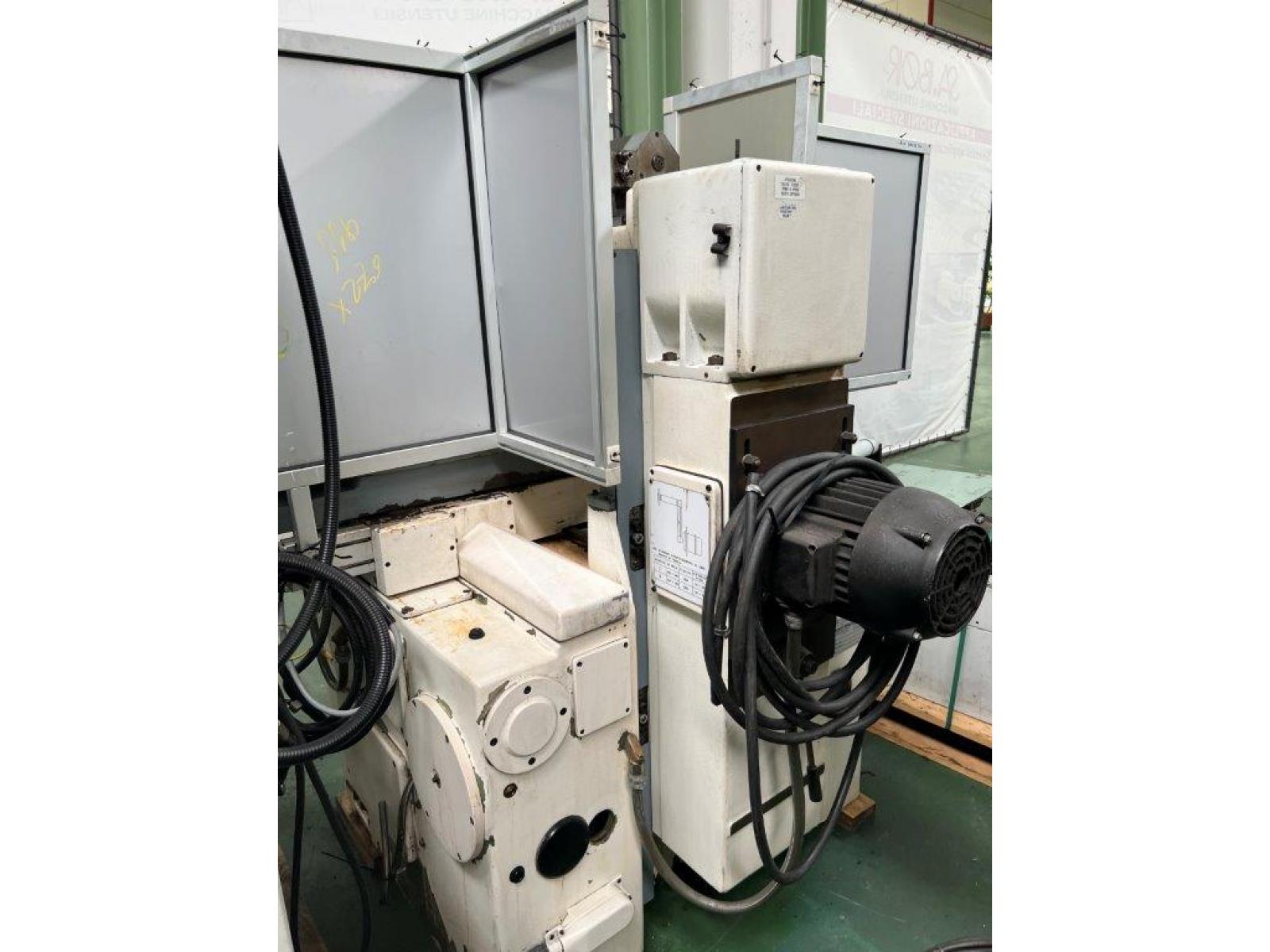

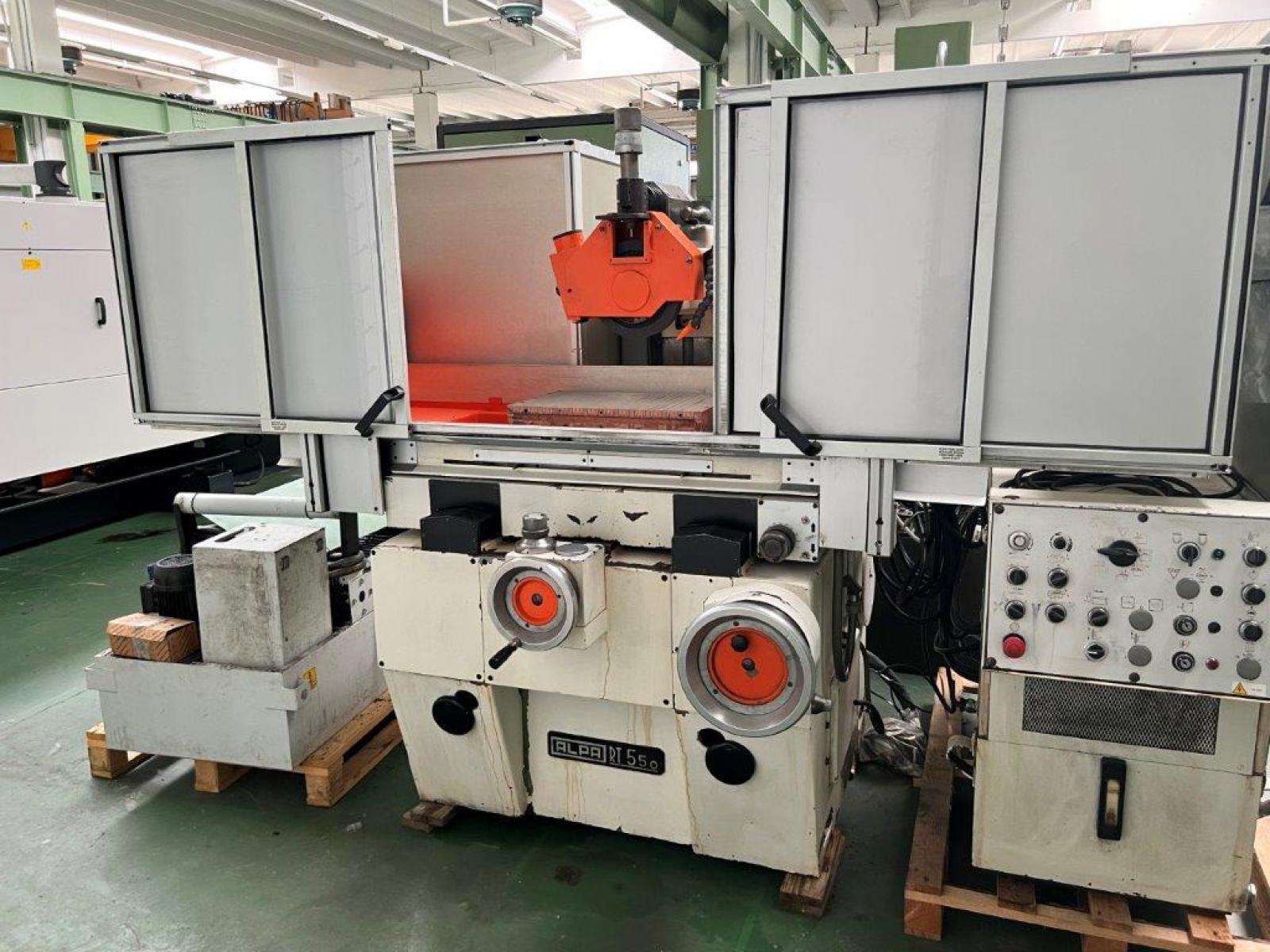

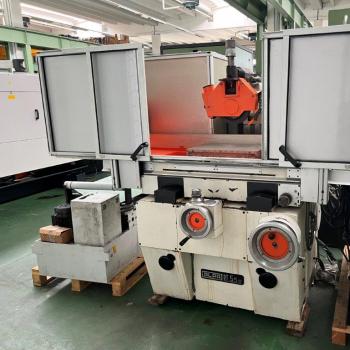

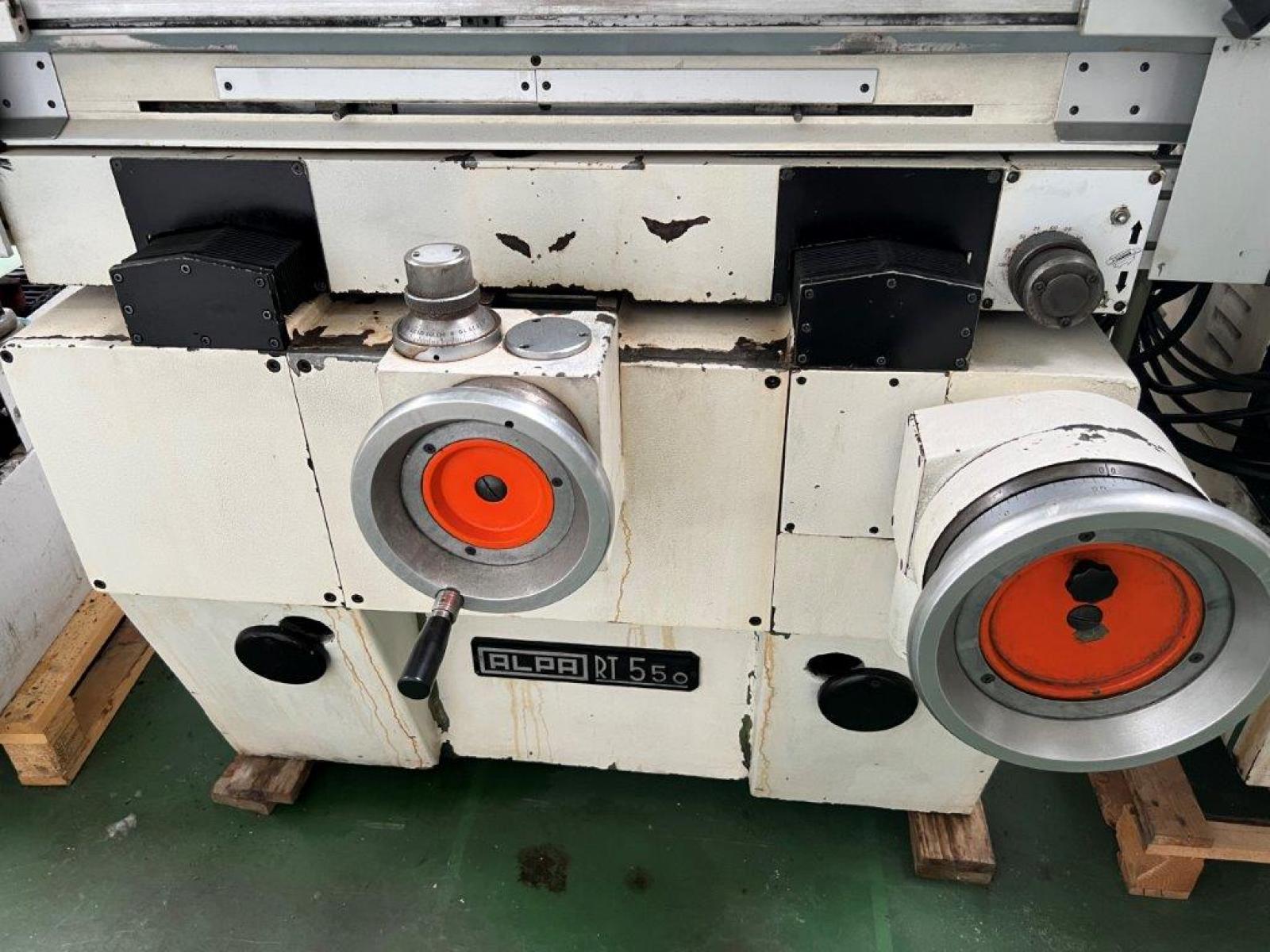

RETTIFICA TANGENZIALE ALPA RT 550 codice prodotto: 27559
scorri le foto orizzontalmente
Affrettati! Questo prodotto è già stato visto 129 volte! Non fartelo scappare!
Dane techniczne:
1 RETTIFICA TANGENZIALE ALPA RT 550
DATI TECNICI – TECHNICAL DATA
Superficie di appoggio tavola - Table surface 550x300 mm
Max. lunghezza rettificabile – Max. grinding lenght. 550 mm
Max. larghezza rettificabile – Max. grinding width.- 340 mm
Max. distanza asse mandrino/piano tavola – Max. distance from tablet o spinale axis 500 mm
Velocità rotazione mandrino - Spindle rotation speed - 1450rpm
Dimensioni mola – Size of grinding wheel – DxLxd 300x50x127mm
Massa approssimativa della macchina - Approximate mass of the machine 2300 Kg
ACCESSORI - ACCESSORIES
piano elettromagnetico SPD – electro magnetic table SPD (500x300 mm) 2015

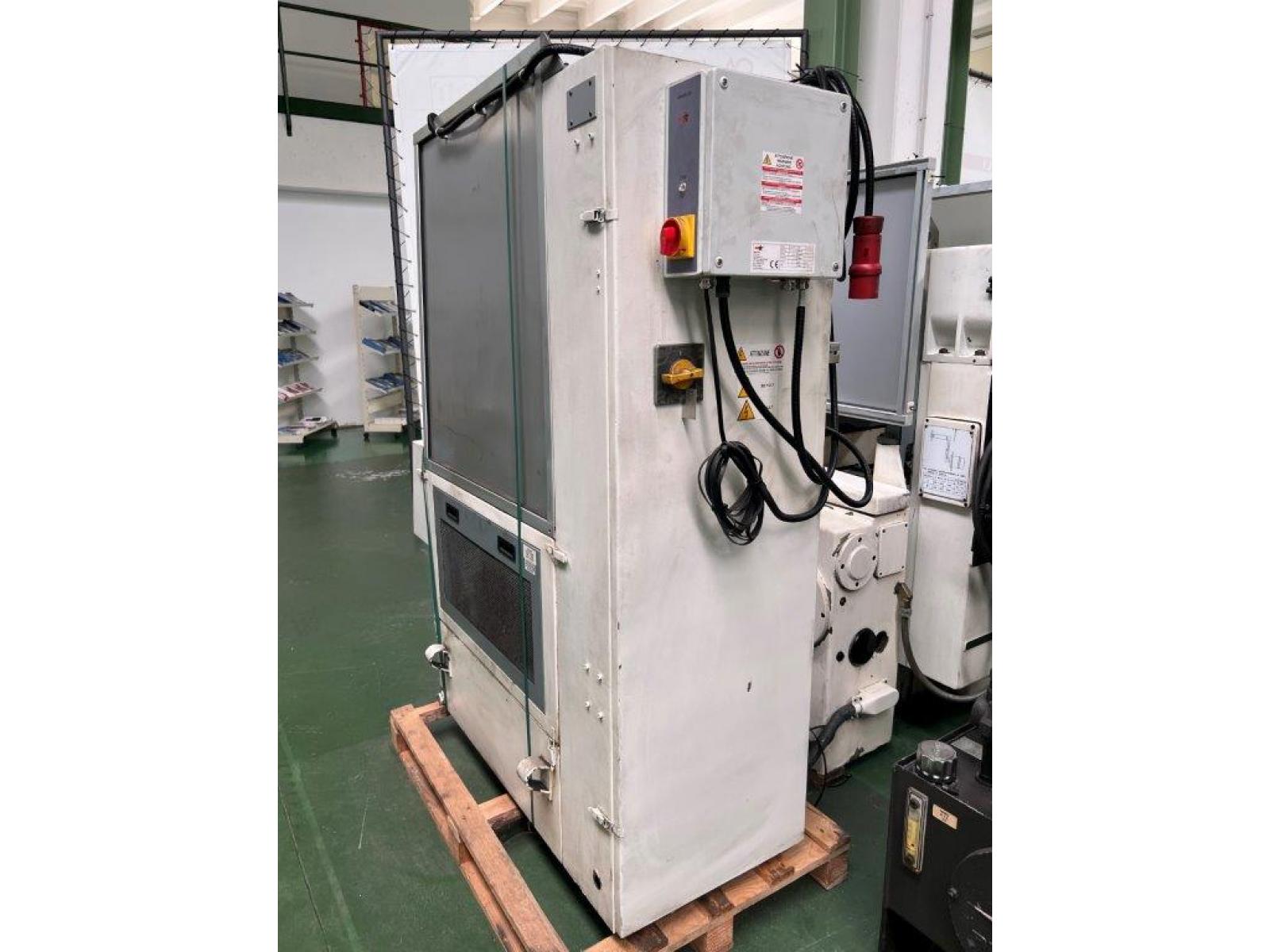

VASCA CON FILTRO A CARTA MANUALE LOSMA 2012
