Dane techniczne:

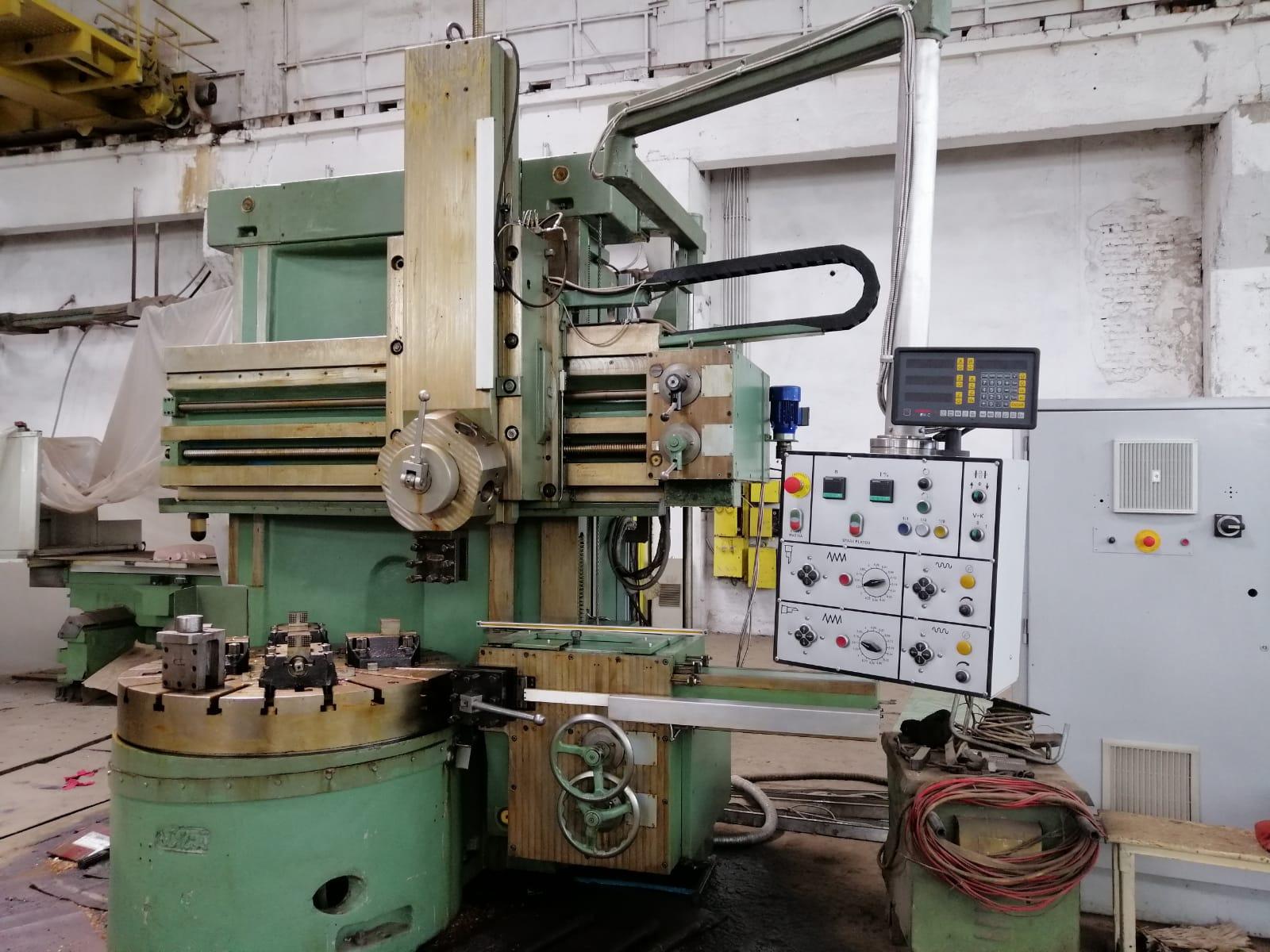

2. Conventional SC14 carousel lathe with dimensions display - functional)

Technical characteristics SC 1400 CC:
- Plate diameter 1250 mm
- Maximum turning diameter 1400 mm
- The maximum height of the part under the crossbar 1000 mm
- Maximum weight of the part on the plate 6000 daN
- Stroke of the right vertical slide 800 mm
- Side slide stroke 650 mm
- Plate rotation speed 5-250 rpm
- Range of working advances 0.05-5 mm/rot
- Machine weight 15500 kg
- Machine dimensions (L x W x H) 4060 x 4450 x 3900 mm
The electrical panel and the mobile control desk are made with SIEMENS, EATON, SCHNEIDER components. The machine is automated with SIMATIC PLC S 7-300 programmable automaton from SIEMENS.

Display of dimensions with measuring rulers for the vertical support and the lateral support for 2 + 2 axes.
